Wave LED
| SKU | Title | Description | Price | Add |
|---|---|---|---|---|
| WAL025968 | WAVE LED 3.5D | Wave LED, 45" arm, 3.5-D lens and clamp. Light grey |
$665.00 |
|
| WAL025969 | WAVE LED 5.0D | Wave LED, 45" arm, 5-D lens and clamp. Light grey |
$675.00 |
Couldn't load pickup availability
Can't find what you're looking for? Contact us for assistance!
Description
Description

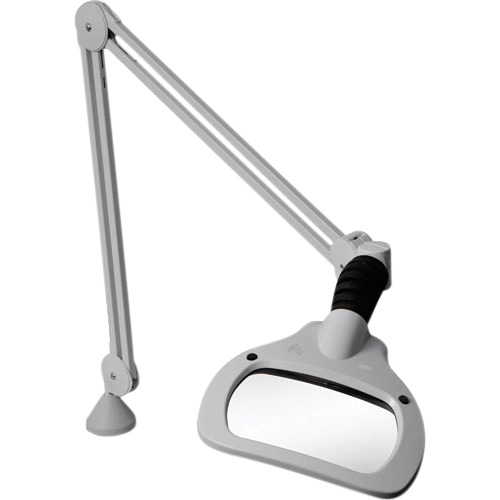

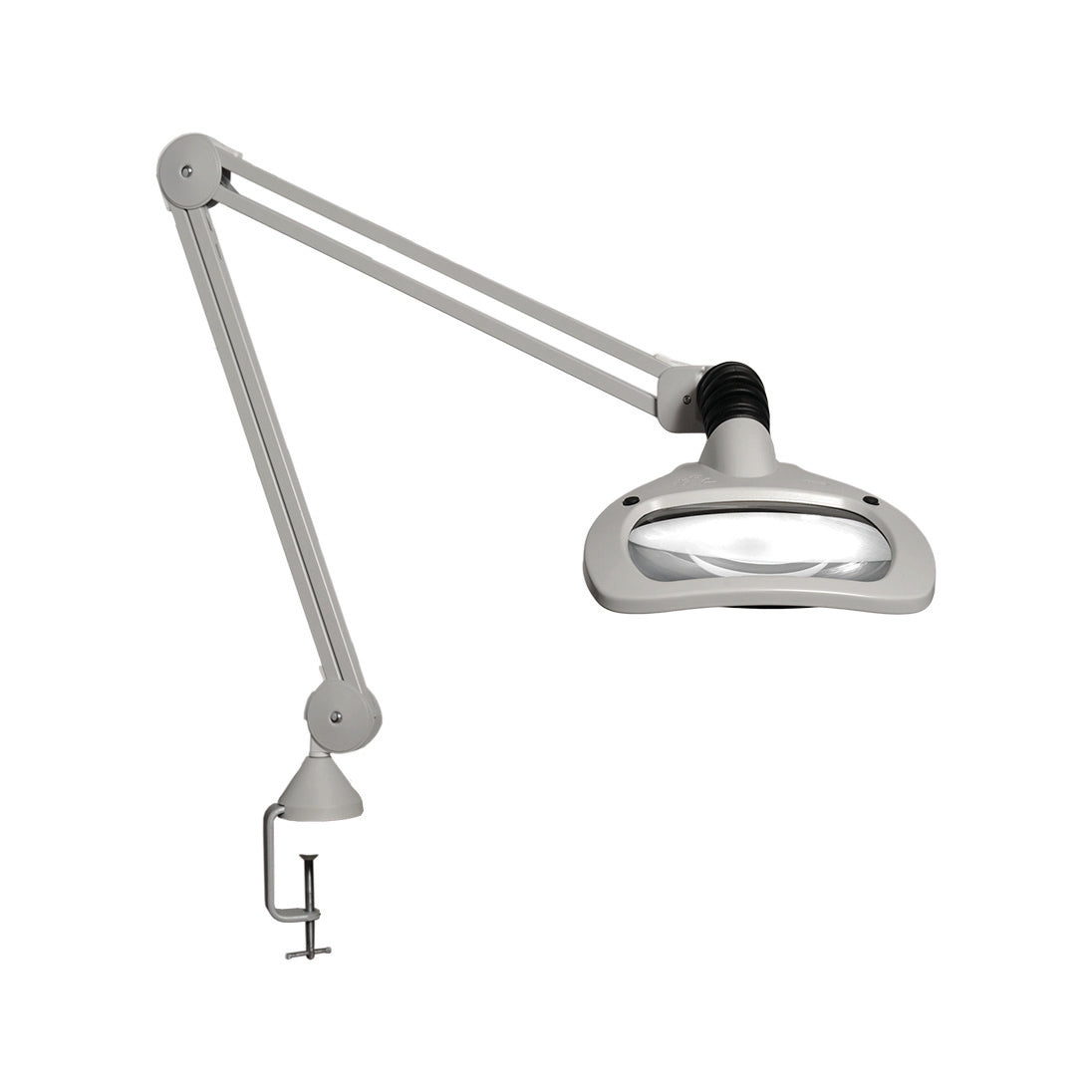

The WAVE LED Magnifier is designed for precision inspection, assembly, and detailed work in industrial, laboratory, and manufacturing environments. Featuring a high-performance optical glass lens, it delivers exceptional clarity with minimal distortion.
Independently controlled left and right LED illumination provides shadow-free magnification and enhanced 3D viewing, while the 45" spring-balanced articulating arm ensures smooth, drift-free positioning with no adjustments required. The fully enclosed construction offers reliable performance in demanding applications.
Available with 3.5 or 5 diopter optical glass lenses, the WAVE LED delivers outstanding optical performance for a wide range of inspection tasks. Backed by a 5-year manufacturer's warranty, it is built for long-term reliability and everyday professional use.
Specification
Specification
| Objective lens | 3.5D (1.88x), 5.0D (2.25x) |
|---|---|
| Lens size | White crown glass lens, 6.7" x 404" (171mm x 114mm) |
| Type | Regtangular |
| STAYS lens options | 4.0D (1x), 6.0D (1.5x), 10.0D (2.5x) |
| Illumination | Selectable left / right illumination |
| CRI | 90 colour rendition index/th> |
| Brightness | 3830 lux 279mm focal length |
| Body material | Steel arm, aluminium head |
| Arm technology | Heavy-duty internal spring 41˝ (1050mm) parallel, three-pivot K-arm. |
| Timer and dimming | : Step dimming 0-50-100%. Auto shut-off function. |
Magnification
| WAVE LED Magnification | |||
| Primary lens dioptre | Secondary lens dioptre | Total magnification | Focal length |
|---|---|---|---|
| 3.5 | 1.88x | 11" (285mm) | |
| 3.5 | 4.0 | 2.88x | 5" (130mm) |
| 3.5 | 10.0 | 4.38x | 3" (75mm) |
| 5.0 | 2.25x | 8" (200mm) | |
| 5.0 | 4.0 | 3.25x | 4.3" (110mm) |
| 5.0 | 6.0 | 3.75x | 3.5" (90mm) |
| 5.0 | 10.0 | 4.75x | 2" (50mm) |
| 5.0 | 10.0 | 4.75x | 2" (50mm) |
Wave LED
3D illumination
selectable left/right light control.
Self-balancing shade
hands-free neck assembly
FAQ's
Description
Description
The WAVE LED Magnifier is designed for precision inspection, assembly, and detailed work in industrial, laboratory, and manufacturing environments. Featuring a high-performance optical glass lens, it delivers exceptional clarity with minimal distortion.
Independently controlled left and right LED illumination provides shadow-free magnification and enhanced 3D viewing, while the 45" spring-balanced articulating arm ensures smooth, drift-free positioning with no adjustments required. The fully enclosed construction offers reliable performance in demanding applications.
Available with 3.5 or 5 diopter optical glass lenses, the WAVE LED delivers outstanding optical performance for a wide range of inspection tasks. Backed by a 5-year manufacturer's warranty, it is built for long-term reliability and everyday professional use.
Can Wave LED Vision LUXO magnify more than 5D?
Can Wave LED Vision LUXO magnify more than 5D?
Yes. it is possible to add the STAYS lenses to the magnifiers to increase the magnification. The maximum total magnification possible is 4.75x
What is the difference between 3D and 3X?
What is the difference between 3D and 3X?
Dioptre is the most common unit used for expressing magnification for low magnification optical systems sich as bench magnifiers. It is the same term as is encountered at the optician when calculating magnification for spectacles. 1 dioptre adds 0.25x in magnification. So 3D (3 dioptres) is normal magnification plus 3 lots of 0.25 = 1.75x.
What is the difference between 3D lighting compared to a ring-light?
What is the difference between 3D lighting compared to a ring-light?
Ring-lights are great for giving even illumination and allowing every detail to be seen clearly. 3D lighting allows the introduction of a controlled amount of shadow which helps the brain understand depth within the image.
What if I can’t fit the edge clamp to my desk?
What if I can’t fit the edge clamp to my desk?
The edge clamp has an opening of appoximately 55mm. If a desk is too thick for the edge clamp, table bushing and surface mounts are also available.
What is the shadeneck?
What is the shadeneck?
The shadeneck is the design feature which covers the neck mechanism with a special gator to prevent FOD falling on the subject. The shadeneck removes the need for locking screws and knobs as it perfectly balances the head whatever the position.
