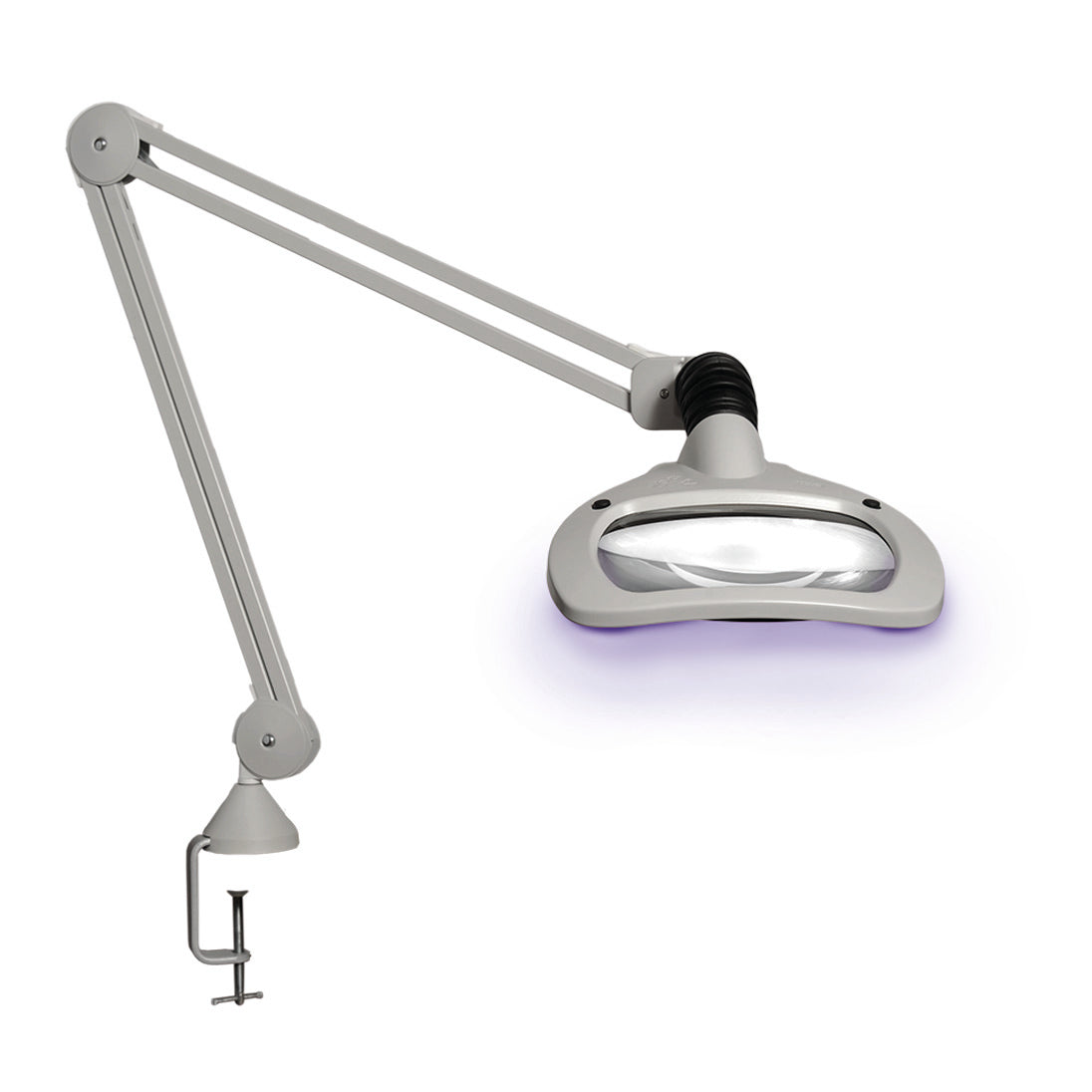

Wave LED White & UV Combo
| SKU | Title | Description | Price | Add |
|---|---|---|---|---|
| WAL030242 | Wave LED White/UV Combo 3.5D | Wave LED WHT/UV Combo 45" arm, 3.5-D and clamp. |
$835.00 |
|
| WAL030243 | Wave LED White/UV Combo 5D | Wave LED WHT/UV Combo 45" arm, 5-D and clamp. |
$845.00 |
|
| WAL030244 | Wave LED ESD White/UV Combo 3.5D | Wave LED WHT/UV ESD COMBO, 45" arm, 3.5-D and clamp. |
$885.00 |
|
| WAL030245 | Wave LED ESD White/UV Combo 5D | Wave LED WHT/UV ESD COMBO, 45" arm, 5-D and clamp. |
$895.00 |
Couldn't load pickup availability
Can't find what you're looking for? Contact us for assistance!
Description
Description

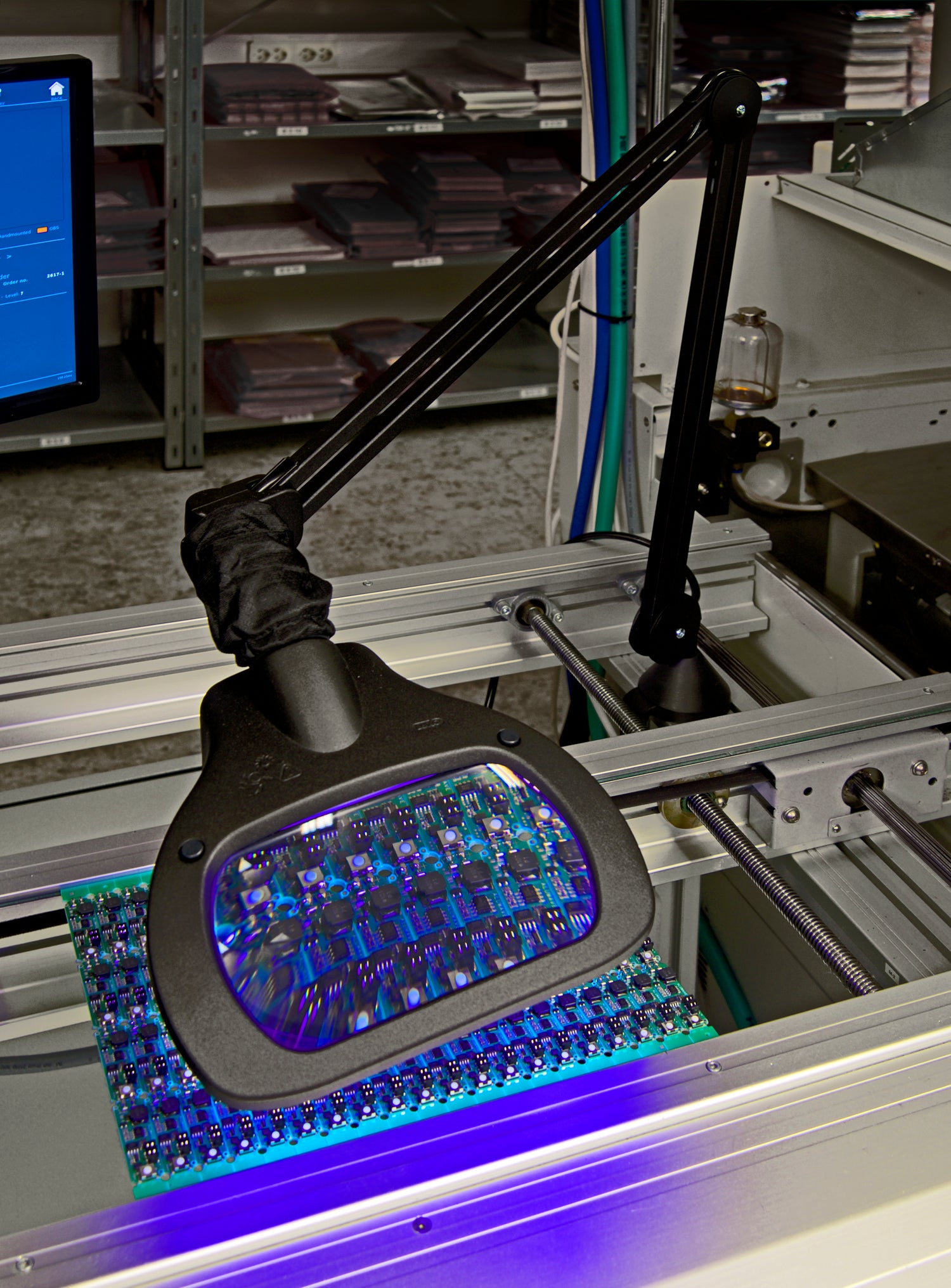

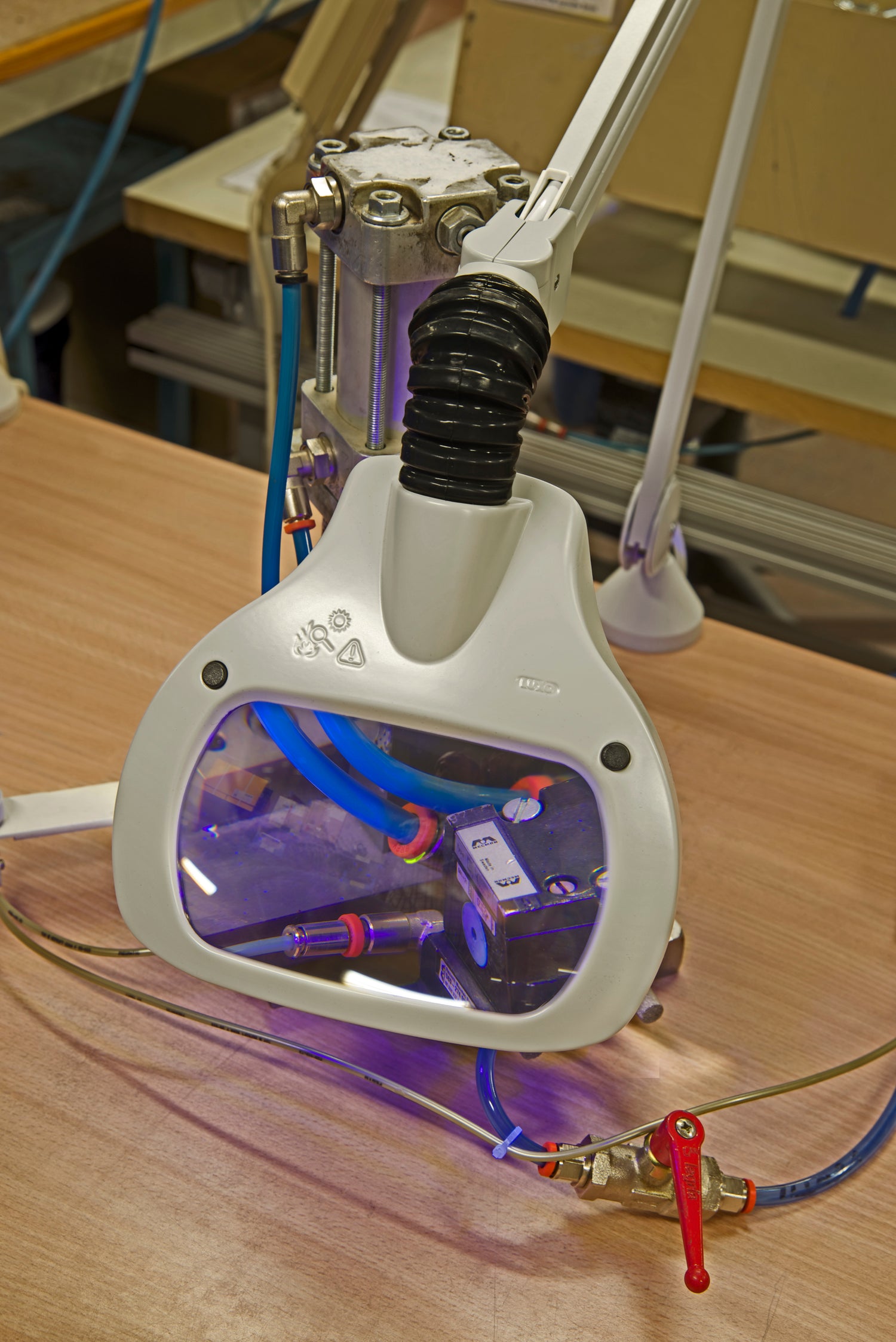

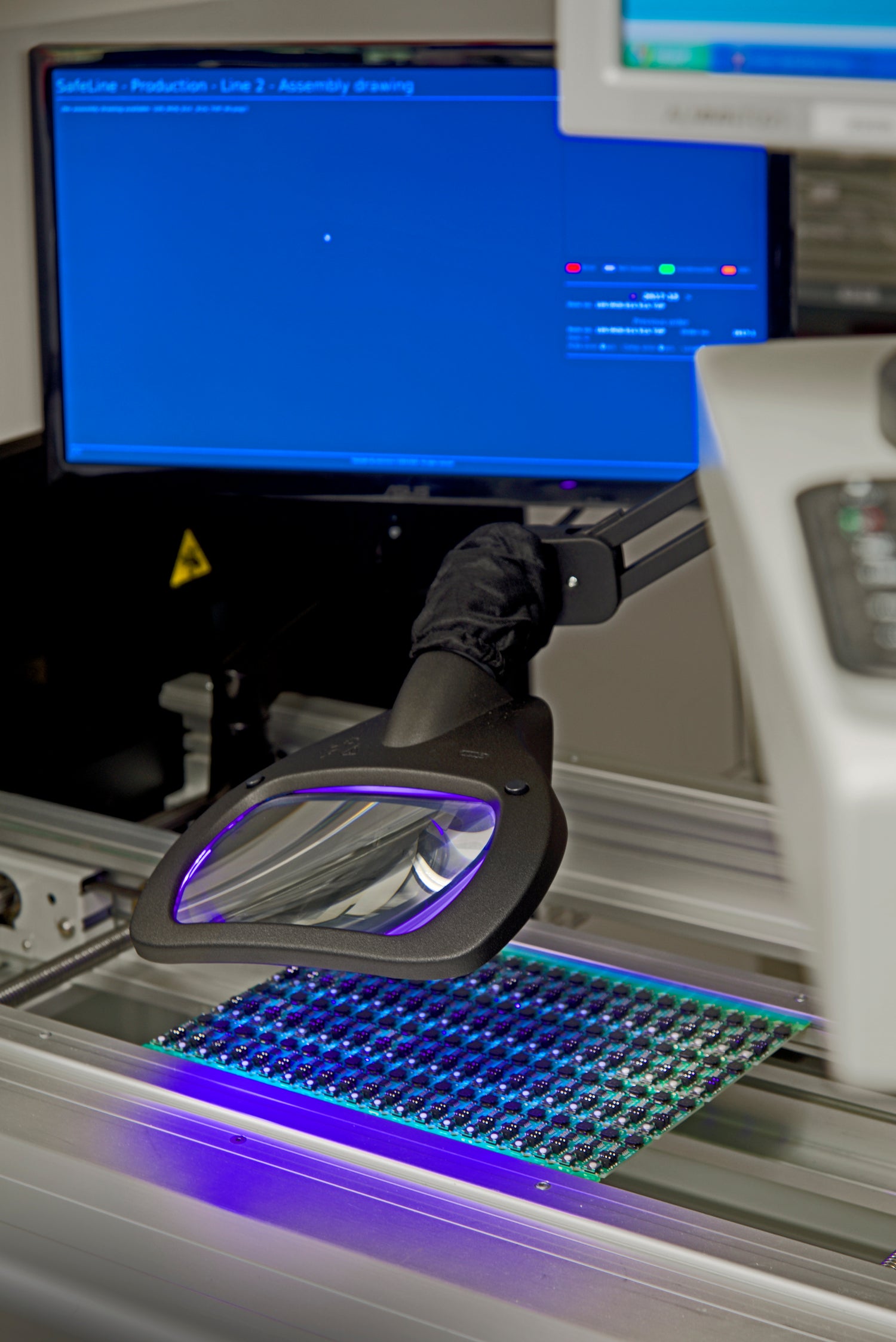

The Wave LED White/UV Combo versions allow you to switch between white and UV illumination with the simple press of a button. The UV component is designed to be powerful enough for use in professional working environments, making it ideal for applications such as inspecting fluorescent coatings on PCBs, verifying security features on currency and documentation, and identifying other fluorescent materials including engineering dyes and some crystals. Supplied with UV-blocking safety glasses.

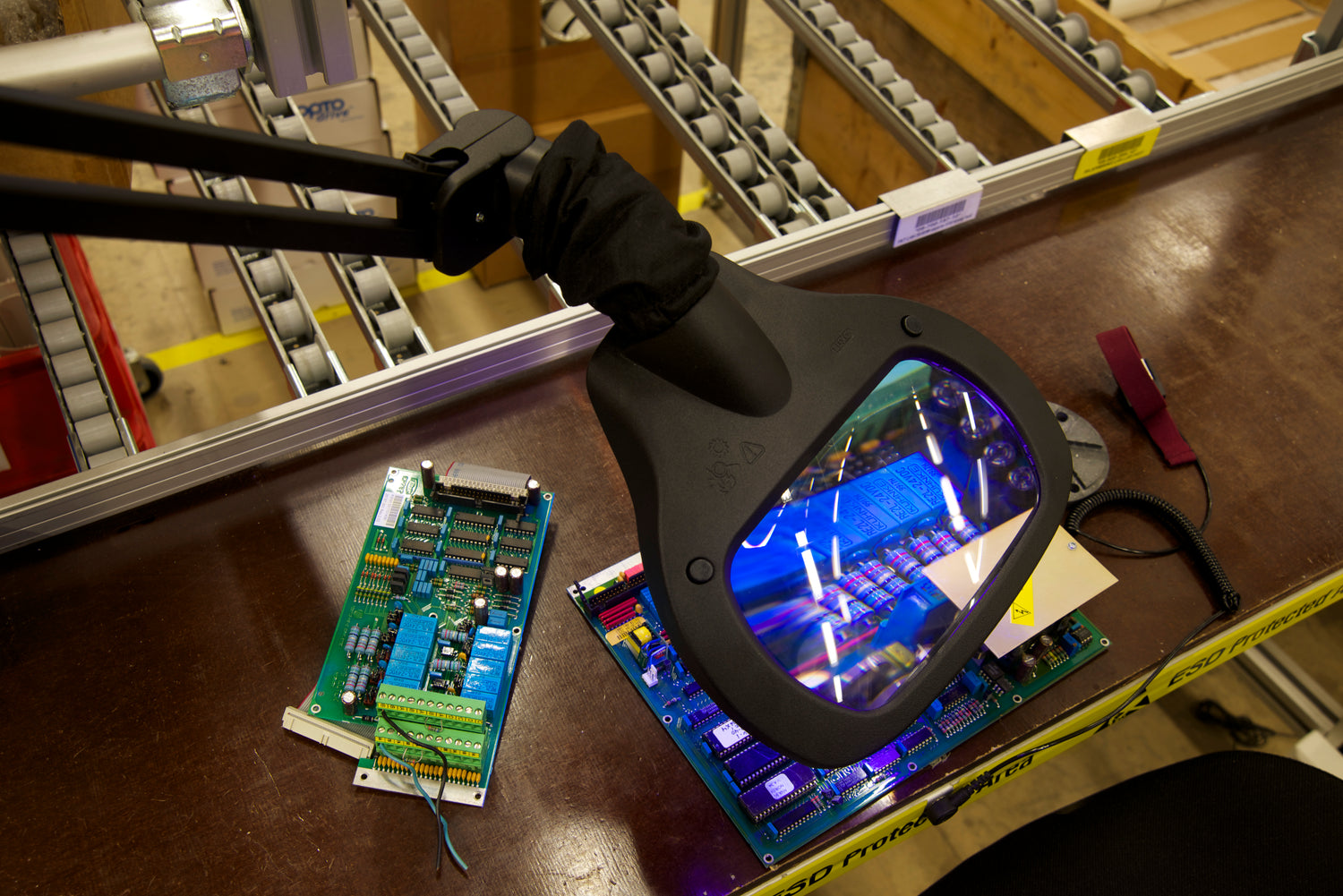

The ESD model combines versatile white and UV illumination with electrostatic discharge (ESD) protection, making it especially suitable for static-sensitive electronics manufacturing, assembly, inspection, and repair environments.
Wave LED offers shadow-free magnification and 3D illumination with selectable left/right light control.
Our Vision LUXO magnifiers are specially designed to always stay in the right position without drifting. The arms are balanced by spring systems which ensure smooth and easy positioning – no knobs to tighten, nothing to adjust.
The fully enclosed neck design is ideal for mechanical, electronics, circuit boards, dental, jewelry, and other precision applications. The Wave LED White/UV Combo is backed by a 5-year warranty for long-term reliability and performance.
Specification
Specification
| Objective lens | 3.5D (1.88x), 5.0D (2.25x) |
|---|---|
| Lens size | White crown glass lens, 6.7" x4.4" (171mm x 114mm) |
| Type | Rectangular |
| STAYS lens options | 4.0D (1x), 6.0D (1.5x), 10.0D (2.5x) |
| Illumination | Selectable left / right illumination |
| CRI | 90 colour rendition index/th> |
| Brightness | 3830 lux 279mm focal length |
| Body material | Steel arm, aluminium head |
| Arm technology | Heavy-duty internal spring 41˝ (1050mm) parallel, three-pivot K-arm. |
| Timer and dimming | Step dimming 0-50-100%. Auto shut-off function. |
Magnification
| WAVE LED Magnification | |||
| Primary lens dioptre | Secondary lens dioptre | Total magnification | Focal length |
|---|---|---|---|
| 3.5 | 1.88x | 11" (285mm) | |
| 3.5 | 4.0 | 2.88x | 5" (130mm) |
| 3.5 | 10.0 | 4.38x | 3" (75mm) |
| 5.0 | 2.25x | 8" (200mm) | |
| 5.0 | 4.0 | 3.25x | 4.3" (110mm) |
| 5.0 | 6.0 | 3.75x | 3.5" (90mm) |
| 5.0 | 10.0 | 4.75x | 2" (50mm) |
| 5.0 | 10.0 | 4.75x | 2" (50mm) |
Wave LED White & UV Combo
Maximum flexibility
perfect balance
3D illumination
selectable left/right light control.
